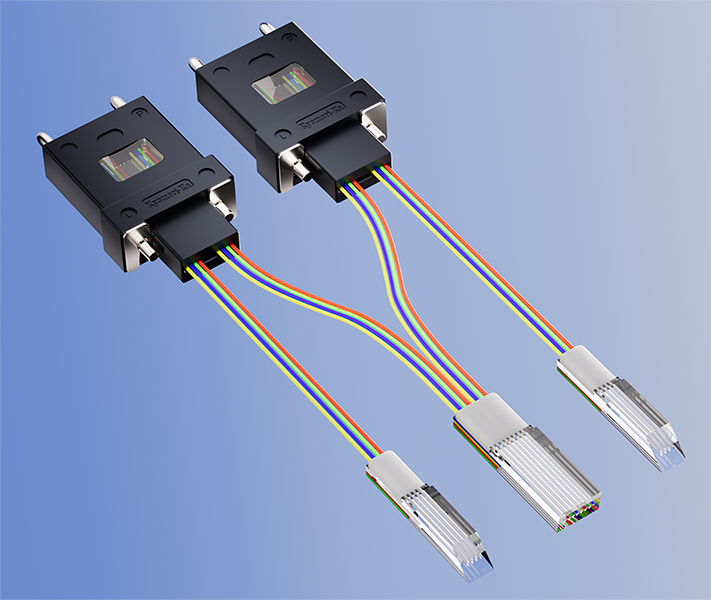

LPO/NPO/CPO Optical Components
The Kyomori-Ka series of FAUs is designed for long-haul/metro networks and data centers. Leveraging advanced fiber processing technology and customizable V-groove chips and lids, the series supports customization of core pitch, precision, channel count, fiber type, and termination styles. Utilizing ultra-high-precision alignment technology, these units achieve low insertion loss and high return loss, supported by advanced dicing equipment and core pitch measurement systems. As a global innovator in materials science, the company simultaneously develops FAU-integrated connectors and interposers to meet the demands of photonic integrated circuits.
Product Images |
Product Name |
Connector Type |
Applicable Fiber Types |
Insertion Loss |
Return Loss |
Fiber Optic Mode |
Wavelength of Light Waves |
Optical Cable Jacket Type |
|---|---|---|---|---|---|---|---|---|
|
Optical Interconnect Assemblies |
MM、SM and APC |
≤0.2dB |
≥60dB |
OS2 9/125μm, OM3,OM4 50μm /125μm |
1310/1550nm,850/1300nm |
900 μm and 1.6/2.0 mm Fiber Optic Cable Jackets |
