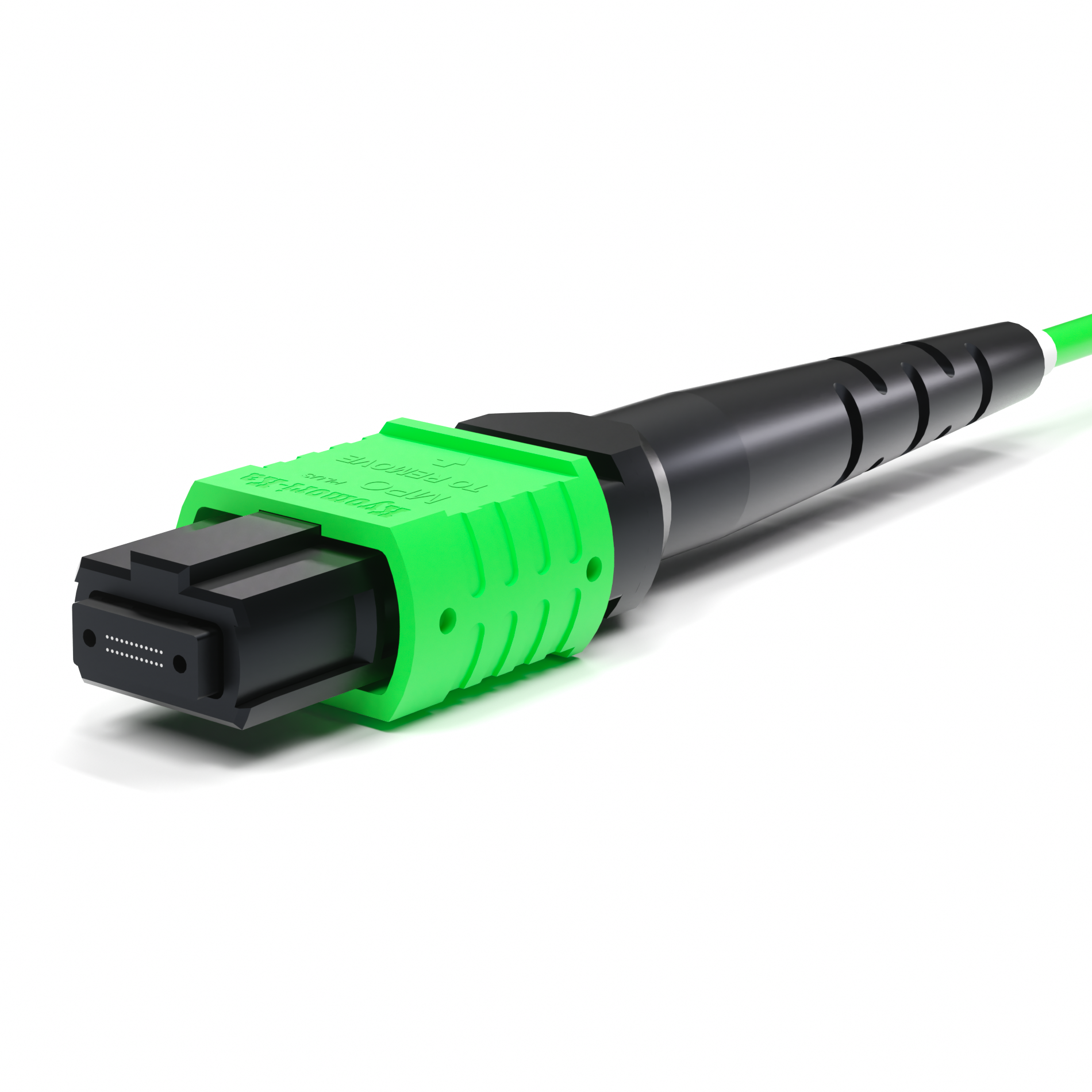

MPO/MTO Series Connectors
MPO/MTO Series Connectors
*Inserts and Fixtures Designed and Manufactured by Kyomori-Ka

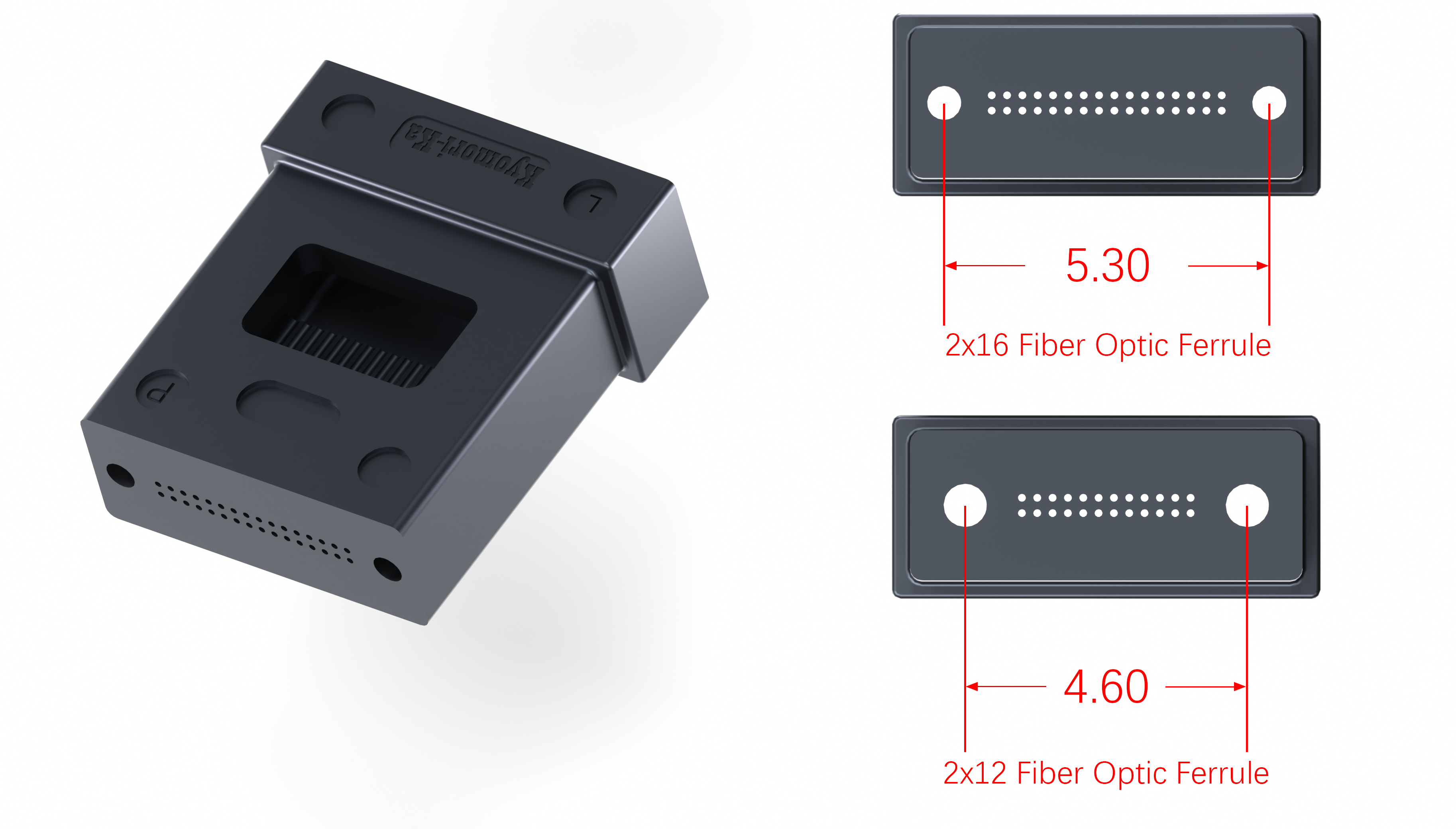

At the core of the MTO is the MT ferrule independently developed by Jingsen Hong; the integrated design of the device and termination process ensures high yields and reliable field assembly.
*Precision Components that Exceed Standard Requirements
MTO series connectors utilize rigorous tolerance control to achieve superior optical performance, while a dust-resistant design ensures high stability and repeatability.
*The New Functional Design Ensures Reliability and Availability
An elliptical guide pin enhances durability and simplifies installation, while a floating ferrule pre-alignment design ensures a secure connection. A detachable housing facilitates maintenance;
an elliptical spring optimizes the clearance between dimensions and the fiber, and a centering structure guarantees consistent, stable performance.
An Invention Patent is Currently Pending—Stay Tuned!
Product Purpose:
●Servers and Storage
●Data Center and High-Performance Computing Environments
●Broadcasting and Media Industry
●Aerospace and Military Communications
●COP Co-Packaged Optics and On-Board Connectivity
●Industrial Automation
●Telecommunications Network
●Aerospace and Military Communications
Download:
Product Specifications
 |
|
Parameter |
Typical Insertion Loss (dB) 12F |
Max Insertion Loss (dB) 12F |
Typical Insertion Loss (dB) 24F |
Max Insertion Loss (dB) 24F |
Typical Insertion Loss (dB) 16F |
Max Insertion Loss (dB) 16F |
Typical Insertion Loss (dB) 32F |
Max Insertion Loss (dB) 32F |
Typical Return Loss (dB) |
Operating Temperature (°C) |
Durability |
||
|
Single Mode |
APC |
Low Loss |
0.10 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
| Standard |
0.20 |
0.70 |
0.25 |
1.00 |
Not Applicable |
Not Applicable |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
| Multimode |
MM |
Low Loss |
0.08 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
| Standard |
0.15 |
0.50 |
0.20 |
0.50 |
0.20 |
0.60 |
0.25 |
0.60 |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
|
||||||||||||||
 |
Parameter |
Typical Insertion Loss (dB) 12F |
Max Insertion Loss (dB) 12F |
Typical Insertion Loss (dB) 24F |
Max Insertion Loss (dB) 24F |
Typical Insertion Loss (dB) 16F |
Max Insertion Loss (dB) 16F |
Typical Insertion Loss (dB) 32F |
Max Insertion Loss (dB) 32F |
Typical Return Loss (dB) |
Operating Temperature (°C) |
Durability |
||
|
Single Mode |
APC |
Low Loss |
0.10 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.20 |
0.70 |
0.25 |
1.00 |
Not Applicable |
Not Applicable |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
Multimode |
MM |
Low Loss |
0.08 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.15 |
0.50 |
0.20 |
0.50 |
0.20 |
0.60 |
0.25 |
0.60 |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
|
||||||||||||||
 |
Parameter |
Typical Insertion Loss (dB) 12F |
Max Insertion Loss (dB) 12F |
Typical Insertion Loss (dB) 24F |
Max Insertion Loss (dB) 24F |
Typical Insertion Loss (dB) 16F |
Max Insertion Loss (dB) 16F |
Typical Insertion Loss (dB) 32F |
Max Insertion Loss (dB) 32F |
Typical Return Loss (dB) |
Operating Temperature (°C) |
Durability |
||
|
Single Mode |
APC |
Low Loss |
0.10 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.20 |
0.70 |
0.25 |
1.00 |
Not Applicable |
Not Applicable |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
Multimode |
MM |
Low Loss |
0.08 |
0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.15 |
0.50 |
0.20 |
0.50 |
0.20 |
0.60 |
0.25 |
0.60 |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
|
||||||||||||||
 |
Parameter |
Typical Insertion Loss (dB) 12F |
Max Insertion Loss (dB) 12F |
Typical Insertion Loss (dB) 24F |
Max Insertion Loss (dB) 24F |
Typical Insertion Loss (dB) 16F |
Max Insertion Loss (dB) 16F |
Typical Insertion Loss (dB) 32F |
Max Insertion Loss (dB) 32F |
Typical Return Loss (dB) |
Operating Temperature (°C) |
Durability |
||
|
Single Mode |
APC |
Low Loss |
0.10 | 0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.20 | 0.70 |
0.25 |
1.00 |
Not Applicable |
Not Applicable |
Not Applicable |
Not Applicable |
≥60 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
Multimode |
MM |
Low Loss |
0.08 | 0.25 |
0.15 |
0.35 |
0.15 |
0.35 |
Not Applicable |
Not Applicable |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|
|
Standard |
0.15 | 0.50 |
0.20 |
0.50 |
0.20 |
0.60 |
0.25 |
0.60 |
≥25 |
-40°~+75° |
Compliant With TIA-568.3 Standards; Mating Durability ≥ 500 Cycles. |
|||
|
|
||||||||||||||
Product Features
|
Solution Universal Hardware for MTO Series Connectors The Komori-Ka MTO series of connectors is a key driver behind the global adoption of multi-fiber optical technology, providing proven, high-performance solutions for data centers and network operators. The MTO series connector solutions cover a range of fiber sizes from 2.0mm to 5.5mm, meeting requirements across all application scenarios. A universal hardware package standardizes the geometric structure, simplifying production and reducing inventory. The PR-MTO is compatible with the standard series and meets spring-force requirements for all use cases. |
|
 |
|
|
●MTO-16 Series Connectors Trusted MTO brand performance for new MTO-16 fiber optic applications. Available with 1x16-fiber and 2x16-fiber MT ferrules. Features the same external dimensions as the standard MTO series but with an offset key. Optimized to minimize debris generation. Compatible with Kyomori-Ka push-pull strain relief boots. |
 |
|
●MTO Series Circular Fiber Optic Connectors Offers the industry's widest range of MTO connectors, delivering trusted performance and reliability. Provides cabling advantages over traditional ribbon cables.Supports round fiber optic cables ranging from 2.0mm to 5.5mm in diameter. Compatible with 2 x 3.0mm round fiber optic cables or zip-cord fiber optic cables. Compatible with Kyomori-Ka push-pull strain relief boots. |
 |
|
●MTO Series Angle Connectors When paired with MTO-series angled flange adapters, it offers the most compact fiber optic cable exit among all MTO connectors in the industry. Supports 3.0mm and 3.6mm round fiber optic cables.Suitable for applications with limited space, such as the front of a bulkhead or inside a cabinet or enclosure. When connected to an MTO-series angled flange adapter, the protrusion from the panel is less than 30mm.
|
 |
|
●Enhanced Performance of MTO Series Connectors Kyomori-Ka offers MTO components specifically designed for demanding applications. Elliptical guide pins keep guide holes clean and minimize debris, thereby enhancing service life and durability; a recessed pin clamp paired with an elliptical spring increases clearance to protect fiber ribbons, while a high-strength version ensures physical contact for 24-fiber dual-row ferrules. Additionally, the products feature enhanced strength and corrosion resistance in the cable and pulling boot, delivering superior performance under extreme temperature cycling. |
 |
|
●MTO Series Ribbon Bare Fibers and Oval Connectors Designed for demanding applications, the Kyomori-Ka MTO component supports ribbon fiber configurations of up to 16 fibers with integrated strain relief. It enables direct termination of bare ribbon fiber or oval-jacketed cables and is compatible with high-fiber-count arrays and standard springs. |
 |
|
●MTO Series Flexible Conduit The MTO jacket integrates flexible and rigid components to eliminate the preferential bending characteristic of ribbon cables, enabling omnidirectional routing and mechanical loading for round cables (3.0/3.6mm). It ensures stable, flexible positioning at 0° and 90° orientations and withstands repeated bending without compromising optical performance. |
 |
 |
 |
 |
|
●MT Ferrule Performance Kyomori-Ka manufactures durable PPS thermoplastic ferrules supporting up to 72 fibers (compatible with 125μm optical fiber); these are compatible with MTO-series MPO connectors and custom optical coupling kits. The products are available in various performance grades—including single-mode and multi-mode—to meet diverse requirements regarding fiber counts and applications. 1.High density; fiber spacing: 0.25 mm.2.A material with extremely low hygroscopicity and exceptionally high environmental stability. 3.Mold markings identify the fiber type and ferrule grade. 4.Angled single-mode (SM) ferrule. 5.MM MT low-loss ferrules are optimized for 10G, 40G, 100G, and 400G applications. 6.The SM MT low-loss ferrule complies with the Grade B requirements of IEC 61755-3-31. |
||
|
●MT-16 Insert Kyomori-Ka’s innovations have established MT-16 as the standard for 400G optical module links. Its comprehensive MT-16 product line extends industry-leading multi-core fiber performance to higher-density specifications. |
||
|
●Single-Mode 8-Degree Angled APC MT Ferrule and MT-16 Ferrule The Kyomori-Ka single-mode APC ferrule features a pre-formed 8° end-face, eliminating the need for grinding and polishing fixture processes, thereby enabling high-efficiency production, low investment, and superior performance. |
||
Plating Specifications
Kyomori-Ka MPO cable assemblies and adapters utilize high-density MTO/MPO connectors and flexible round cables to deliver high port density and low-loss connectivity while simplifying network architecture.
Featuring a robust, fool-proof design (incorporating color-coding and keying), these products meet the demands of the AI era for high-bandwidth expansion within limited data center spaces, enabling efficient
installation, flexible cabling, and cost-effective operation and maintenance.
12/24F Middle Key
Order Numbering Rules:
Conventional
Number of Digits
Polarity Reversal
Flangeless
MP-
SD
6
-
1 Or 2 Or 4 Or ...
S
ST
8
D
W
Ultra-Thin
16/32F Offset Key
Dual Polarity Switching
Flanged
Angle and Array Rules:
Angle
Number of Digits
Polarity Reversal
MP-
A
2 Or 4 Or 16...
S
P
D
Array
Dual Polarity Switching
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
 |
*Feature
Exceeds TIA and IEC dimensional requirements to achieve optimal TWAL performance;
Board-edge connections for on-board optical applications; FTTx distribution hubs; High-density patch panels for data center, MSO, and CO applications; MPO-to-single-fiber breakout modules; Compliance with IEC 61754-7-1 and 61754-7-2; Compliance with TIA 604-5. |
