USB Type-C Connector

Type-C RC10 Series

Kyomori-Ka Corporation has recently developed a USB Type-C connector, a standard interface widely used in computers, smartphones, portable devices, AV equipment, game consoles, and other industries. As smartphones become increasingly powerful and compact, the demand for waterproofing also rises. To address these requirements, we have developed and begun selling a compact and robust one-piece waterproof connector compliant with the USB Type-C standard. The "USB Type-C™ Connector" features a miniaturized design, supports 40Gbps high-speed transmission, a maximum current supply of 5A, and supports reversible insertion. Compared to previous models, it features more terminals and more precise surface mounts, ensuring better connection reliability and high-speed transmission characteristics. Kyosemi participated in the standardization design of the USB Type-C™ connector. Leveraging its years of experience in high-precision design of small connectors and high-speed transmission design, Kyosemi developed the USB Type-C™ connector, which features excellent EMI/EMC characteristics, sufficient mechanical strength, and a locking mechanism with outstanding lifespan.

◆USB4 Gen3 (40Gb/s) Certification
◆Rated power up to 240W
◆High-speed transmission up to 40Gb/s
◆Optimized contact design enables superior message integrity performance.
◆Reversible plug and cable direction

Product Purpose:


●Smartwatch	●iPad Tablet	●Mac Computer	●Smart Set-Top Box TV App	●Earbuds / Pods	●iPhone Smartphone

●Smart Speaker Pod	●UAV/Drone	●In-vehicle Equipment	●Security Equipment	●AGV/AMR	●Motor Drive

●Variable Frequency Drive (VFD)	●Radar, LiDAR	●TCU/Gateway	●Industrial Camera	●CNCs/PLCs	●Endoscope

●Industrial Sensors	●Server	●MRI/CT	●Industrial Robots	●Motor	●Meter

●Car Charger	●HUD Head-Up Display	●IVI/Navigation	●Monitor	●Camera	●Multifunction Printer

Download:

Product Catalog Product Drawing 3D(igs/stp) Product Specifications Test Report(TR) Product Packaging Specifications RoHS Report

Product Specifications

Connector Shape	Terminals, Sockets	Product Mounting Method
Wire Harness	None	Reference Specifications	USB4.0, USB3.0, USB3.2, USB2.0
Product Opening Direction	Straight, Right angle	PIN Count	16,24 Cores
Transmission Specifications	USB3.0, USB3.1 Gen2，USB3.2 Gen3，USB4.0Gen4	Transmission Speed	5Gbps，10Gbps，20Gbps,40Gbps
Waterproof Performance of Connectors	IPX4,IPX8	Connector Terminal Spacing	0.2mm，0.5mm
Rated Voltage	AC/DC 48Vr.m.s.	Rated Current	_{VBUS (Terminal No. A4, A9, B4, B9) DC 5A (Total) GND (Terminal No. A1, A12, B1, B12) DC 6.25A (Total) VCONN (Terminal No. B5) DC 1.25A Others DC 0.25A/pin}
Contact Impedance	40 mΩ以下	Insulation Resistance	100 MΩ
Withstand Voltage	100 Vr.m.s. 1Min	RoHS Environmental Compliance	yes
Installation Method	THR, SMT	PCB Packaging Design	Standard on-Board, Standard off-set
Mating and Unmating cycles	10000 Times	Electroplating of Contact Parts	Au
Electroplating Thickness	Au	Salt Spray Time (corrosion resistance)	48h
Wiring Method		Suitable Wire Types
Suitable Wire Size（AWG）Min		Suitable Wire Size（AWG）Max
Operating Temperature Range（Min）	-40°C	Operating Temperature Range（Max）	+85°C
Packaging	Emboss	Product Package Quantity	1500 PCS

Product Order Coding Rules：RC10-X-XXS-X-895

①Series Name

②Product Waterproof Form

③Number of Signal Terminals

④Circuit Board Connection Type

⑤Packaging type

RC10

W:None

Y;Yes

16,24 Cores

J: SMT Type

X; Hybrid Type

800): Standard product;
[⑧=05]: Embossed packaging (1,300 pieces/roll);
[⑧=10]: Embossed packaging (1,100 pieces/roll);
(895): Embossed packaging (1,500 pieces/roll) (for prototypes)

Order Number	Production Status	Data Download	Product Type	Key Features	Core Product Direction	Number Of Cores	PCB Mounting and Fixing Types	PCB Mounting Location	Signal Transmission Performance	Operating Temperature Range (°C)	IP Rating	RoHS Status
RC10-S0-24S-XJ4	In the plan	Download	Female	Socket, 24-pole, mixed contacts, board-mounted, with rear shielding, 3.4mm center height.	Right Angle	24	SMT + Through Hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-B0-24S-JJ2	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, center-mounted, no rear shielding, center height 0.47 mm	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-B0-24S-JJ3	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, center mounting, no rear shielding, center height: -0.07 mm	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-B0-24S-XJ1	Mass production in progress	Download	Female	Socket, 24 poles, mixed contacts, center-mounted, with rear shielding, center height 0.7 mm	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-BG-24S-JJ1	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, center mounting, no rear shielding, center height 0.47 mm, casing pre-cut.	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-BN-24S-JA2	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, center mounting, no rear shielding, center height: -0.64 mm	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JJ1	Mass production in progress	Download	Female	Socket, 24-pole, 2-row SMT, onboard, with rear shielding, housing DIP length 0.6 mm, housing 2-point DIP	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JJ4	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, onboard, with rear shielding, housing DIP length 0.9 mm	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JJ7	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, onboard, with rear shielding, housing DIP length 1.2 mm	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-WJ1	Mass production in progress	Download	Female	Vertical socket, 24 poles, height: 12 mm	Vertical	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-B0-24S-JJ1	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, center-mounted, with rear shielding, center height 0.47 mm.	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-XJ1	Mass production in progress	Download	Female	Socket, 24 poles, mixed contacts, onboard, with rear shielding, center height 1.6 mm.	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-W0-24S-JA2	Mass production in progress	Download	Female	Socket, 24-pole, waterproof (IPX8), 2-row SMT, short housing type, center height 1.35 mm	Right Angle	24	SMT	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX8	Qualified
RC10-WH-24S-JA3	Mass production in progress	Download	Female	Socket, 24-pole, waterproof (IPX8), 2-row SMT, center height 1.5 mm	Right Angle	24	SMT	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX8	Qualified
RC10-S0-16S-WJ4	Mass production in progress	Download	Female	Vertical socket, 24 poles, height: 10 mm, full SMT type	Vertical	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-16S-JA1	Mass production in progress	Download	Female	Socket, 16-pole, single row SMT, no back shielding, DIP length 0.9 mm	Right Angle	16	SMT + Through hole	Board Type	USB2.0, USB3.0	-55°C ~ +85 °C	IPX4	Qualified
RC10-S0-16S-JA3	Mass production in progress	Download	Female	Socket, 16 poles, single-row SMT, no back shield, DIP length 1.2 mm	Right Angle	16	SMT + Through hole	Board Type	USB2.0, USB3.0	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JAA	Mass production in progress	Download	Female	USB Type-C 连接器，兼容 USB4，2 排 SMT，板上型，24 极，插座	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-B0-24S-JAA	Mass production in progress	Download	Female	USB Type-C connector, compatible with USB4, 2-row SMT, recessed design, 24 pins, receptacle.	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JA2	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, board-mounted, with rear shielding, housing DIP length 1.2 mm.	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-XA8	Mass production in progress	Download	Female	Socket, 24 poles, mixed contacts, board type, with rear shielding, 3.4 mm center height	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JA1	Mass production in progress	Download	Female	(For automotive specifications) Socket, 24 poles, 2 rows, SMT, board-mounted, with rear shielding, housing DIP height 0.6 mm	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55°C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JJ2	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, board-mounted, with rear shielding, housing DIP height 0.6 mm	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-S0-24S-JJ3	Mass production in progress	Download	Female	Socket, 24 poles, 2 rows, SMT, onboard, no back shield, housing DIP height 0.6 mm	Right Angle	24	SMT + Through hole	Board Type	USB3.2, USB4 Gen.2x2	-55 °C ~ +85 °C	IPX4	Qualified
RC10-BD-24S-JJ4	Mass production in progress	Download	Female	USB Type-C connector, compatible with USB4, 2-row SMT, recessed design, 24 pins, receptacle.	Right Angle	24	SMT + Through hole	Recessed Plate Type	USB3.2, USB4 Gen.2x2	-30°C ~ +85°C	IPX4	Qualified

Product Features

Compatible With USB PD EPR (maximum 240W (5A/48V)). The Flip-up design dllows for the insertion and removal of the plug without considering its orientation. Excellent EMI/EMC characteristics and mechanical strength ensure a long-life locking structure. SMT Contact Right-Angle Socket Dual-row SMT connector for space-saving contact installation. Compliant with Universal Serial Bus Type-C Cable and Connector Specification Revision 2.3. Supports high-speed transmission of 10 Gbps x 2 (20 Gbps) (compliant with USB 3.2 standard). Waterproof Socket USB Type-C compatible connector. Single waterproof type. Waterproof rating IPX7 or higher. Hybrid Contact Socket Through-hole and SMT hybrid contact sockets offer excellent reusability. Compliant with USB Type-C version 2.1 specification. 10 Gbps x 2 (20 Gbps) high-speed transfer capability (compliant with USB 3.2 standard).	Vertical Socket The vertical socket meets the needs of monitors, peripherals, and more. Compliant with USB Type-C version 2.1 specification. Supports 10Gbps x 2 (20 Gbps) high-speed transmission (compliant with USB 3.2 standard). 16-pin Vertical Socket This 16-pin single-row SMT connector meets the space-saving needs of miniaturized devices. Compliant with USB Type-C version 2.1 specification. *USB2.0（480Mbps） USB4® compliant right-angle socket USB4 40Gbps certified socket connector Compliant with USB Type-C Version 2.1 Compliant with USB PD EPR (up to 240W (5A/48V)) Compliant with USB4 Gen3 standard

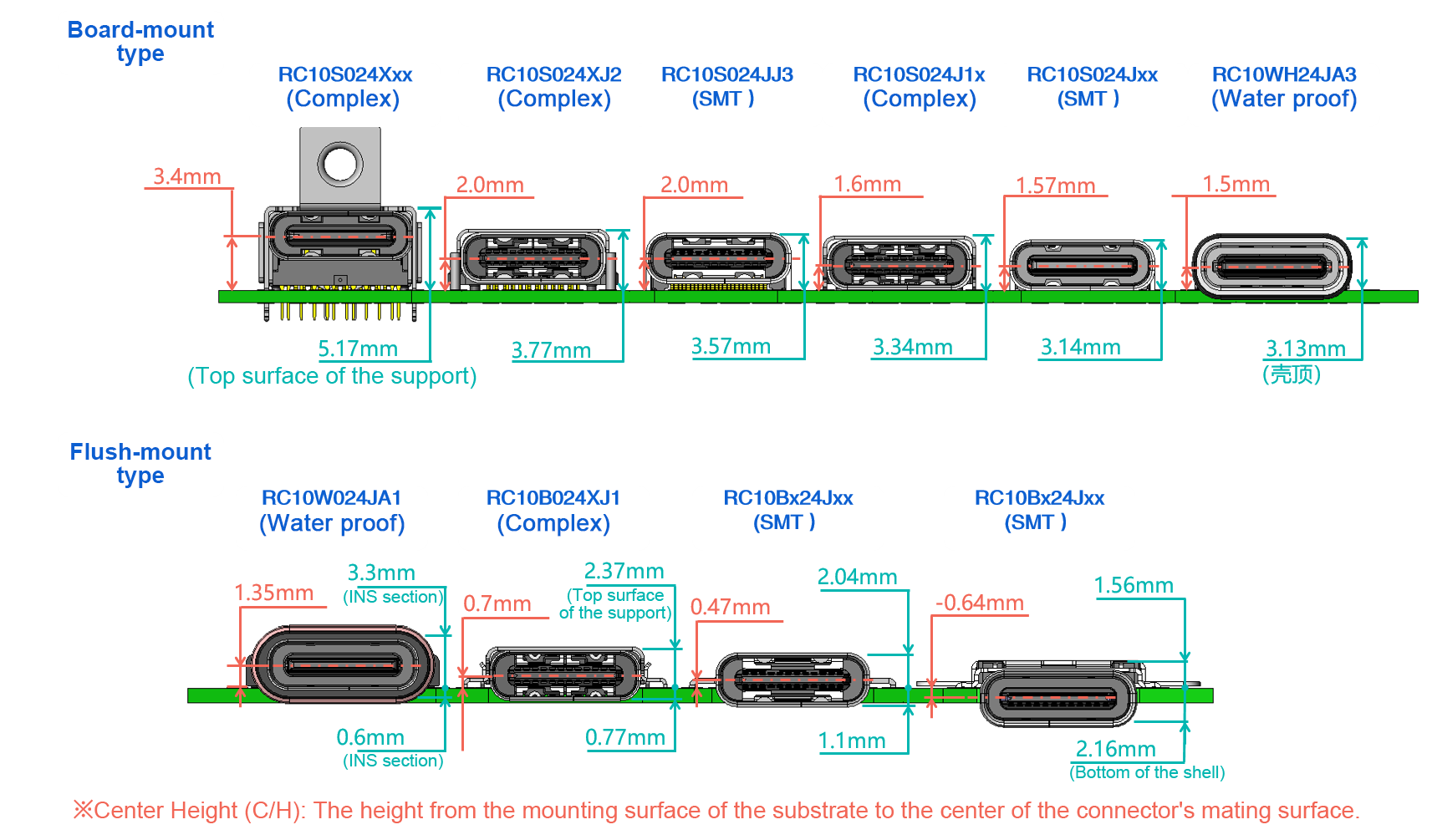

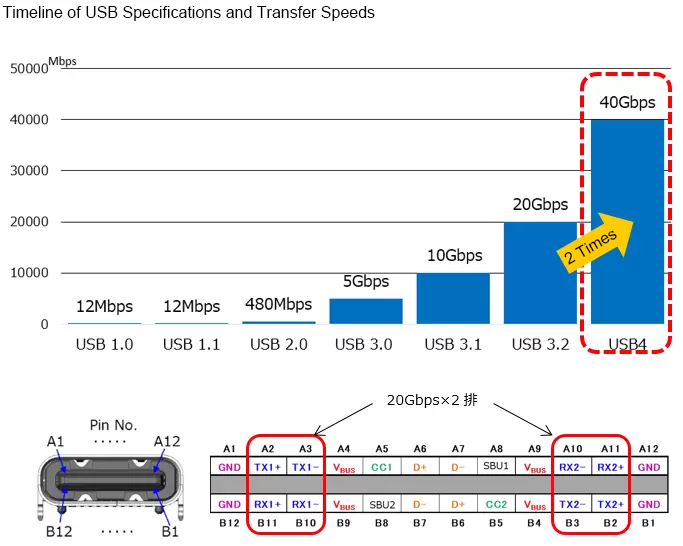

◆USB4 Product Summary	◆Product Design Evolution

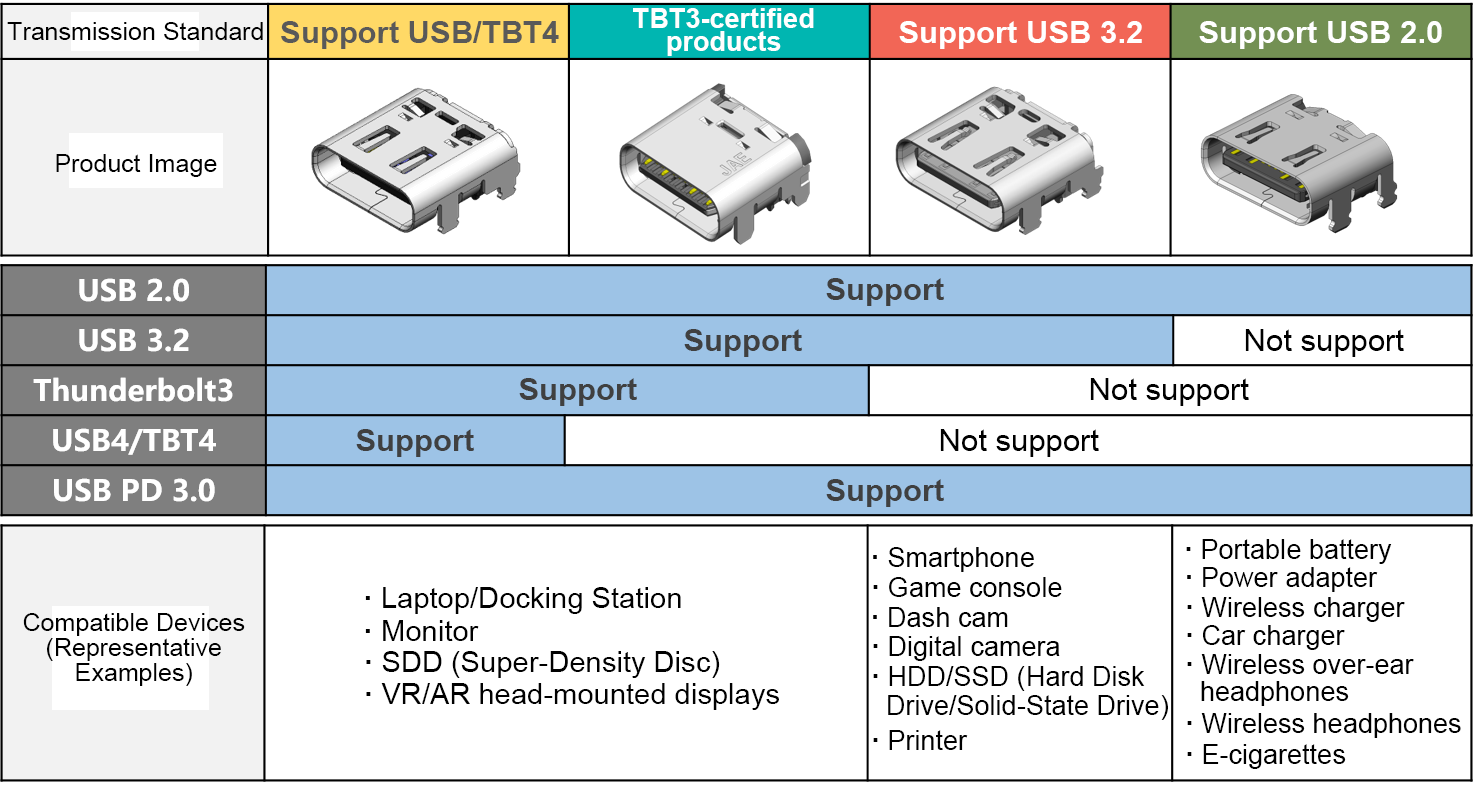

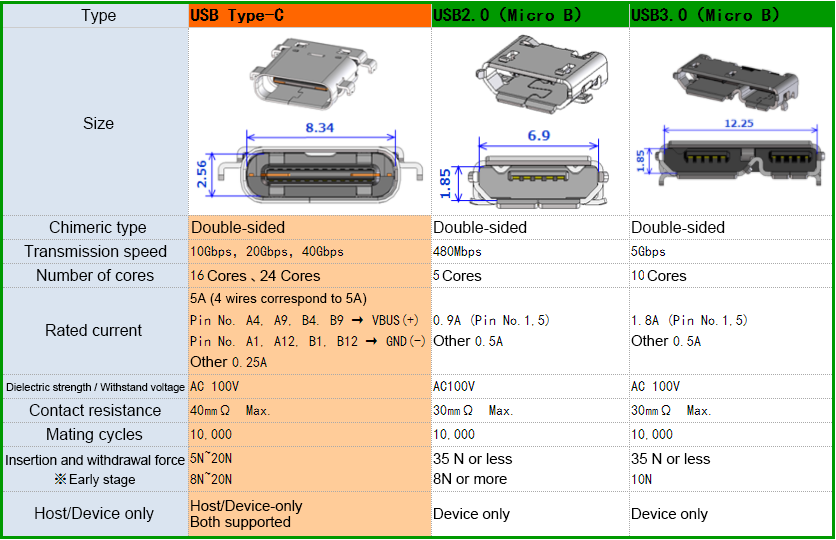

◆Comparison of Various USB Type Products	◆USB Type-C Product Specifications
